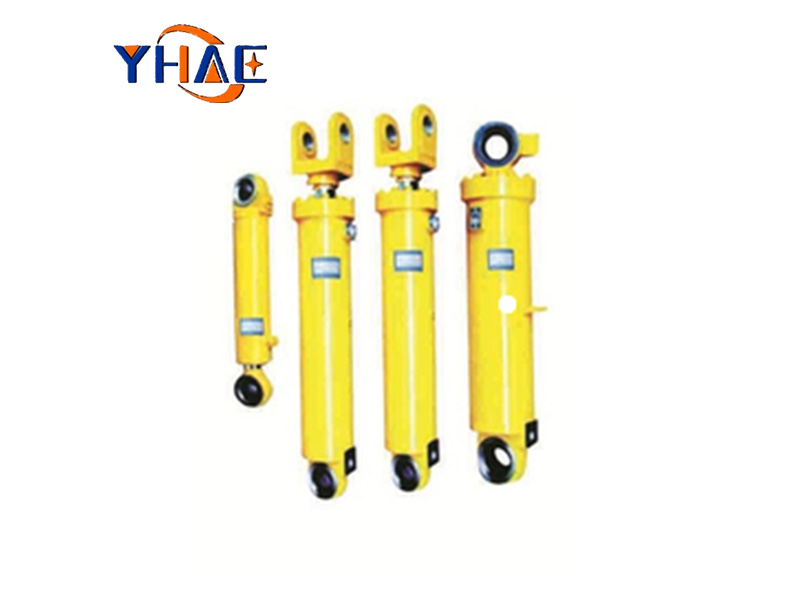

液压油缸

本系列液压缸具有结构简单，工作可靠、拆装方便易维修、可带缓冲装置及联接方式多样等特点。适用于工程机械、矿山机械、起重运输机械等行业。

使用范围：

HSG系列双作用单活塞肝式液压缸，是液压系统中作往复运动的执行机构。其结构简单，工作可靠，装拆方便，易于维修可带缓冲装置及联接方式多样等特点。除适用于工程机械外，也适用于起重运翰机械、矿山机械、建筑机械、车辆、船舶、冶金及其他机械等。

结构示意图：

型号选择：

HSGL01-D/d*100-E2501

HSG一双作用单杠活塞式液压缸(HSG-free jar(the piston type)of hydraulic pressure of one pole of double functions)L-缸盖联接方式；L=螺纹式缸径≤中80);K=卡键式(缺径≥本80)(L-the way of connection of jar lid:L=Whorl type (diareter ofthe jar≤$80);K=Card key)(wanted diameter=$80)

01-设计序号(the serial number for design)

D/d-缸径mm/活塞杆径mm(D/d-diameter of the jar mm/diameter of cylinder ro mm)

100-液压缸行程(100-the journey of hydraulic pressure jar)

E-压力等级16Mpa(E-the grade of pressure 16Mpa)

2-缸头、缸筒连接方式：1=缸头耳环带衬套；2=缸头耳环关节轴承；3=铵轴(用于缸径≥80卡键式连接);4=端部法兰(用于缸径≥80卡键式连接);5=杆部法兰(用于缸径≥80卡键式连接)

1=jar head ear with the bush;2=jar head earrings with joint bearing;3=the ream axle(used in diameter of jar≥80connection of card key);4=tip flange (used in diameter of jar≥80 connection of card key);5=Middle part of flange (used indiameter of jar ≥80 connection of card key)

5-活塞杆端连接方式：1=杆端外螺纹；2=杆端内螺纹(缸径≥63);3=杆端外螺纹杆头耳环带衬套；4=杆端内螺纹杆头耳环带衬套

(缸径≥63);5=杆端外螺纹杆头耳环带关节轴承；6=杆端内螺纹杆头耳环带关节轴承(轴承≥63);7=整体式活塞杆耳环带衬套(缸径

=40、50);8=整体式活塞杆耳环带关节轴承(缸径=40、50)

(5-the Coe name of the connection way of the end of the cylinder rod:1=whorl outside the end of the pole;2=whorl inside theend of the pole(diameter of jar≥63);3=pole of threaded rod of earrings with the bush;4=pole of threaded rod inside the endof the pole of hair earrings with the bush(diameter of jar≥63;5=pole of threaded rod outside the end of pole of head earringswith the ream axle;6=pole of threaded rod inside the end of pole of pole of head earring s with the ream axle(axletree≥63);7=Integral cylinder rod earrings with the bush (diameter of jar=40.50);8=Integral cylinder rod earrings with the reamaxle(diameter of jar=40,50)

0-缓冲部位代号；O-不带缓冲；1=两端带缓冲；2=缸头端带缓冲；3-杆头端缓冲(缸径40、50、63不带缓冲，u=2时只有缸头端带缓冲。)

(0-the code name of the buffer position:O=without buffering:2=with buffer at the end of the jar:3=with buffer at the end ofthe jar (diameter of jar 40.50,63 without buffering)1-油口连接方式代号：1=内螺纹(1-=the code name of the connection way of the oil mouth:1=Inteior whorl)

基本参数：

外形尺寸图：
